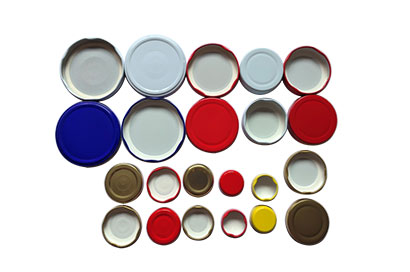

Twist Off
Twist Off :
| ITEM. |
Outside Diameter |
Inside Diameter |
Claw Diameter |
Twist OFF Height |
Claw Height |
PVC Thickness |
Claw quantity |
| Hard PVC |
Soft PVC |
| Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
min. |
max. |
min. |
max. |
| #30 |
33.55 |
±0.15 |
29.10 |
26.75 |
±0.20 |
12.65 |
±0.30 |
11.50 |
±0.25 |
0.75 |
1.40 |
0.75 |
1.55 |
3 |
| #38 |
42.05 |
37.60 |
35.20 |
9.65 |
8.60 |
| #43 |
44.75 |
40.90 |
38.60 |
9.00 |
7.45 |
4 |
| #48 |
48.85 |
46.00 |
43.70 |
9.00 |
7.45 |
| #53 |
56.25 |
52.40 |
49.35 |
9.70 |
8.50 |
| #58 |
60.15 |
56.30 |
53.25 |
9.70 |
8.50 |
| #63 |
66.35 |
62.55 |
59.50 |
9.70 |
8.50 |
| #66 |
69.25 |
65.45 |
62.40 |
9.70 |
8.50 |
| #70 |
73.25 |
69.45 |
66.40 |
9.70 |
8.50 |
| #82 |
85.05 |
81.25 |
78.20 |
10.90 |
9.50 |
6 |
